Introduction
Shopping for a 2026 Toyota Tacoma to tow a boat, camper, or job-site trailer? The number you see in an ad or spec sheet doesn't always apply to the truck on the lot.
Towing capacity and payload capacity are two of this truck's most important ratings, whether you're hauling lumber for work or pulling a travel trailer on weekends. Many shoppers assume one "max tow" figure covers every Tacoma. It doesn't.
The published maximum belongs to a specific build. Cab style, bed length, drivetrain, transmission, and factory equipment all shift the usable number. Add passengers, cargo, roof racks, or a loaded trailer tongue, and it shrinks further.
This guide breaks down 2026 Tacoma towing and payload capacity by trim and powertrain, shows how Toyota calculates these ratings, answers practical bed-hauling questions, and covers the safety limits every owner should respect.
Key Takeaways
- The 2026 Tacoma tows up to 6,500 lbs in select SR5 and TRD PreRunner XtraCab configurations; most trims rate lower.
- Payload tops out around 1,700 lbs, a figure that covers people, gear, accessories, and trailer tongue weight combined.
- The highest-towing Tacoma and the highest-payload Tacoma aren't the same truck.
- The door-jamb certification label and Owner's Manual override any general spec sheet.
- TRD Off-Road and TRD Pro suit different buyers: terrain and equipment matter more than a single number.
What Towing and Payload Capacity Represent in the 2026 Tacoma

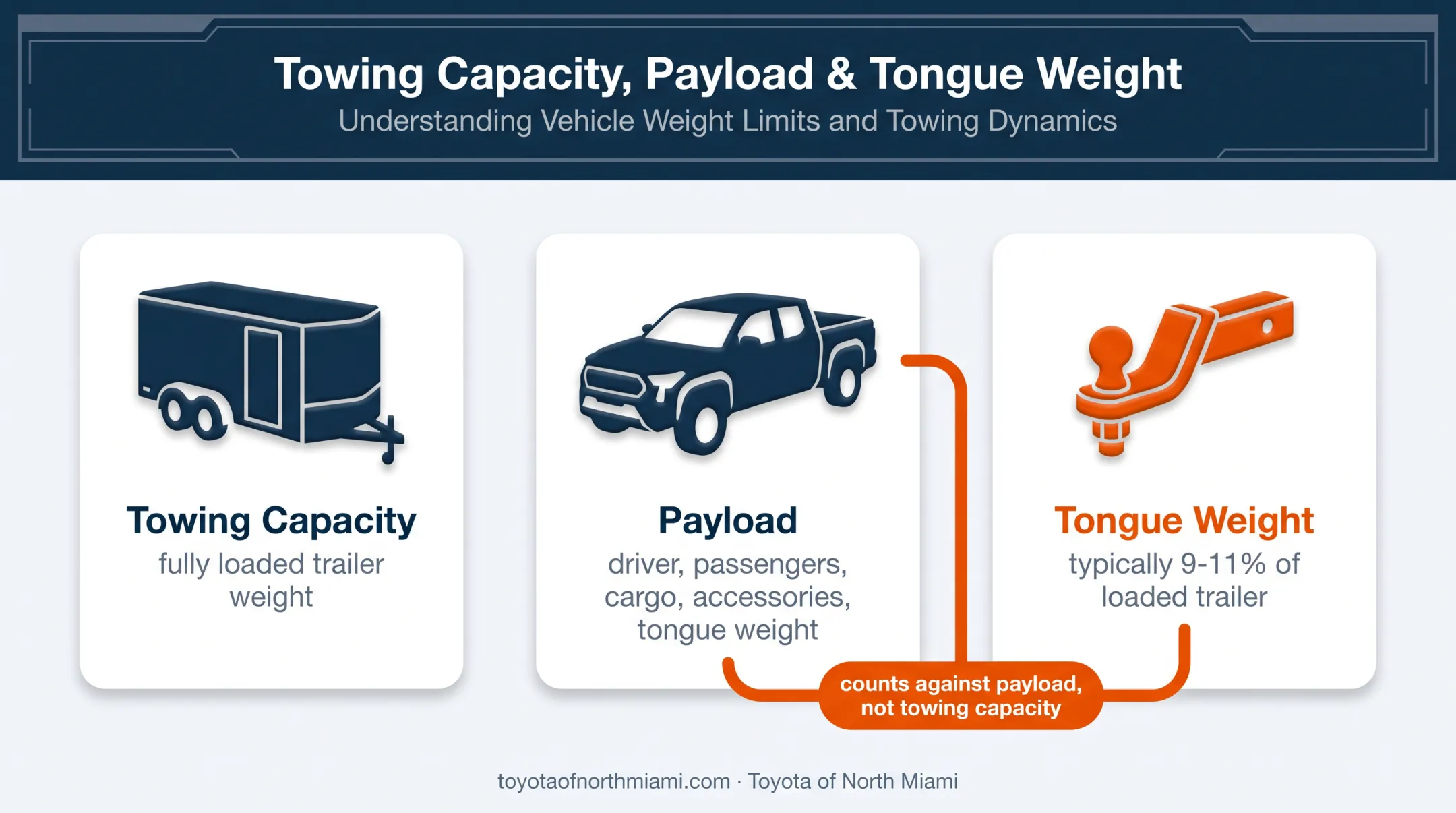

Towing capacity is the maximum weight of a fully loaded trailer the Tacoma is rated to pull — the trailer plus everything in or on it. Payload is different. It's the total weight the truck itself carries: driver, passengers, cargo in the bed or cab, bolted-on accessories, and the tongue weight pressing down on the hitch.
Both figures come from testing, not marketing copy. Toyota evaluates the frame, powertrain, suspension, tires, wheels, brakes, cooling system, hitch, and axles together, then certifies the combination that meets SAE's J2807 standard. That's why several related ratings travel together instead of standing alone:
| Rating | What it measures |
|---|---|
| Towing capacity (TWR) | Max weight of a properly equipped, loaded trailer |
| Payload | Occupants + cargo + accessories + tongue weight |
| GVWR | Max allowable weight of the loaded truck alone |
| GCWR | Max combined weight of loaded truck plus loaded trailer |
| GAWR | Max load allowed on each axle, front and rear |
| Curb weight | Truck weight with full fluids, no cargo or passengers |
| Tongue weight | Downward force the trailer places on the hitch |
Here's the part that catches people off guard: tongue weight doesn't count against towing capacity. It counts against payload. A trailer loaded to the typical 9-11% tongue-weight range can push a Tacoma over its payload limit even while the truck stays well under its towing rating.
Factors That Influence Tacoma Capacity in Real-World Operation
Capacity shifts with the build, not just the trim badge:
- Engine choice (i-FORCE or i-FORCE MAX)
- Transmission, drivetrain, cab style, and bed length
- Axle configuration and factory tow equipment
- Wheel/tire size and installed accessories
Payload shrinks fast once the truck is loaded:
- Every passenger and their gear subtracts from the total
- Tools and bed cargo add weight quickly
- Roof racks and bolted-on accessories claim their share
- Trailer tongue weight draws from the same number
Real-world conditions still matter within rated limits:
- Steep grades, heat, headwinds, and altitude cut available power and cooling margin
- Trailer aerodynamics and brake condition affect control
- Cargo distribution and tire pressure change handling stability
Dealer listings and spec sheets can lag behind production changes. Confirm your exact build against Toyota's official specifications, the certification label inside the driver's door jamb, and the Owner's Manual before you hitch up.
Range of 2026 Tacoma Towing and Payload Capacity
Treat every figure below as "up to" for a specific configuration, not a lineup-wide guarantee.

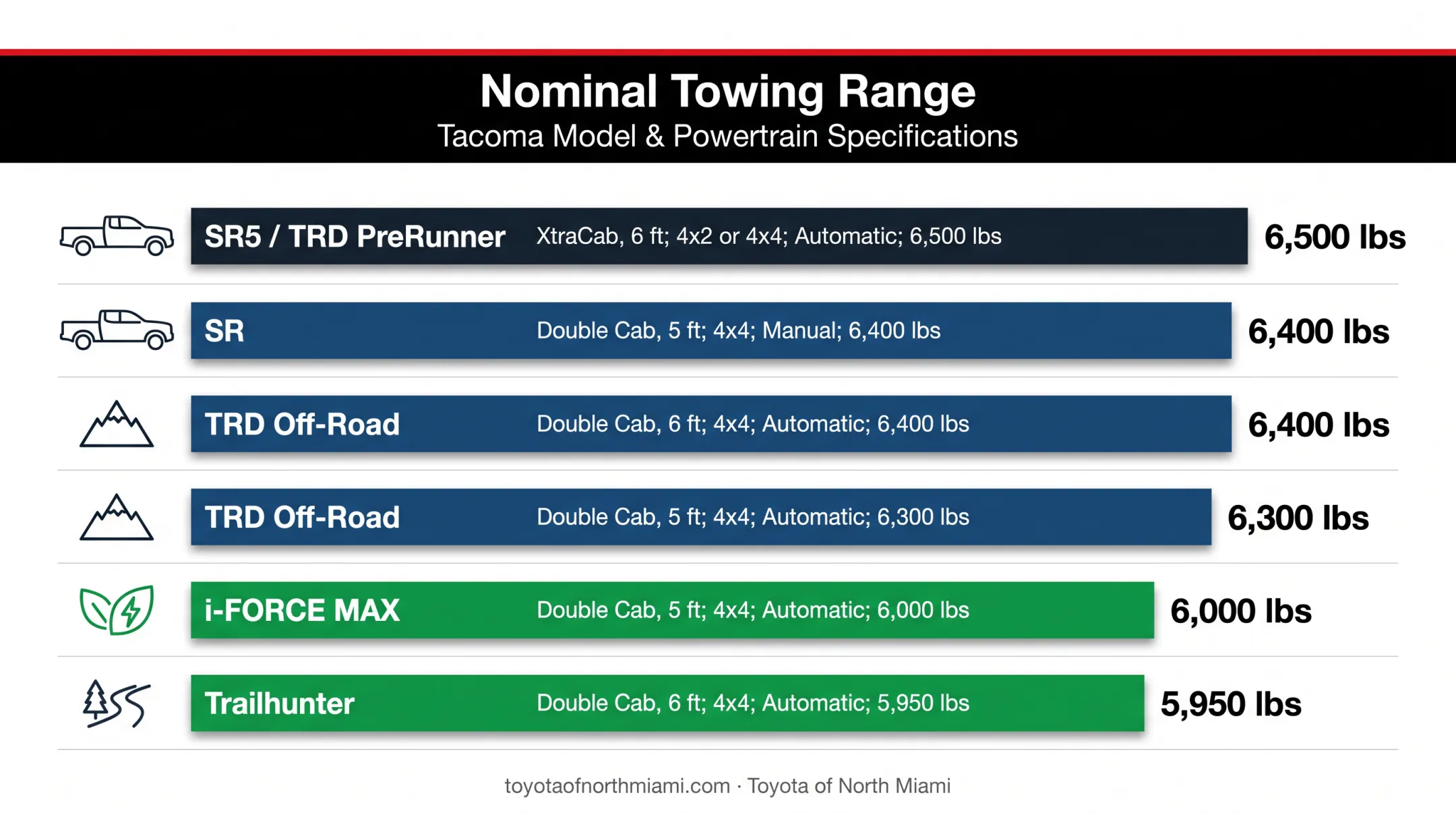

Nominal Towing Range
| Trim/Build | Cab & Bed | Drivetrain | Transmission | Towing |
|---|---|---|---|---|
| SR5 / TRD PreRunner | XtraCab, 6 ft | 4x2 or 4x4 | Automatic | 6,500 lbs |
| SR | Double Cab, 5 ft | 4x4 | Manual | 6,400 lbs |
| TRD Off-Road | Double Cab, 6 ft | 4x4 | Automatic | 6,400 lbs |
| TRD Off-Road | Double Cab, 5 ft | 4x4 | Automatic | 6,300 lbs |
| i-FORCE MAX (hybrid, short bed) | Double Cab, 5 ft | 4x4 | Automatic | 6,000 lbs |
| Trailhunter (hybrid, long bed) | Double Cab, 6 ft | 4x4 | Automatic | 5,950 lbs |
The highest verified rating, 6,500 lbs, belongs to gas-powered XtraCab builds with the 6-foot bed and automatic transmission.
Every i-FORCE MAX hybrid trim tops out at 6,000 lbs, dropping to 5,950 lbs for the long-bed Trailhunter despite the hybrid's higher torque output. More torque doesn't automatically mean a higher tow rating; Toyota's published axle and GCWR limits set the actual ceiling.
A lower-rated configuration can still be the right pick. A Double Cab hybrid with more rear-seat room, better fuel economy under load, or TRD Off-Road equipment may fit a buyer's daily needs better than a 6,500-lb XtraCab they'll never load to capacity.
Nominal Payload Range
| Powertrain / Drive / Cab | Payload |
|---|---|
| Gas, 4x2, XtraCab | 1,405-1,460 lbs |
| Gas, 4x2, Double Cab | 1,445-1,690 lbs |
| Gas, 4x4, XtraCab | 1,230 lbs |
| Gas, 4x4, Double Cab | 1,380-1,705 lbs |
| Hybrid, 4x4, Double Cab | 1,420-1,710 lbs |
Toyota's own documentation puts the lineup's top payload somewhere around 1,700 lbs, though published figures aren't perfectly consistent across sources. Treat that number as a ballpark ceiling and confirm your specific truck's rating on the certification label.
Payload isn't the same as "how much stuff fits in the bed." Passengers, cab cargo, roof or bed accessories, and trailer tongue weight all draw from the same total.
Safe Operating Margin
- Leave cushion below the published maximum instead of planning every trip at the limit
- Trust your specific truck's door-jamb label and an actual scale weight once a loaded combination gets close to its limits
- Never exceed Toyota's published ratings, or the limits of your hitch, trailer, tires, wheels, axles, or local law. This is a hard ceiling, not a suggestion
Key Technical Properties and How Tacoma Capacity Is Verified
Capacity is a set of ratings that work together. Checking one number and ignoring the rest is how trucks end up overloaded on paper even when the bed "looks fine."
Powertrain and Configuration Effects
Both Tacoma engines are 2.4-liter turbocharged four-cylinders:
- Standard i-FORCE: 228-278 hp, 243-317 lb-ft torque
- i-FORCE MAX hybrid: up to 326 hp, 465 lb-ft torque (standard on TRD Pro and Trailhunter; optional on TRD Sport, TRD Off-Road, and Limited)
Torque doesn't win here. Gas XtraCab builds max out at 6,500 lbs towing while hybrids cap at 6,000 lbs.
Cab and bed choice matter too. XtraCab versus Double Cab, 4x2 versus 4x4, and automatic versus the available 6-speed manual (offered on SR and TRD Sport/Off-Road) can each shift the rating by hundreds of pounds.
Towing Equipment and Trailer Compatibility
Standard across the lineup:
- Class IV hitch receiver with 7-pin/4-pin wiring
- Trailer Sway Control, part of the stability system
Available depending on trim or package:
- Integrated trailer brake controller (standard on Limited, packaged on several trims)
- Trailer Backup Guide, wireless trailer camera, extended blind-spot monitoring
This equipment helps you drive and back up more confidently. It doesn't raise the truck's legal or mechanical weight limits by a single pound.

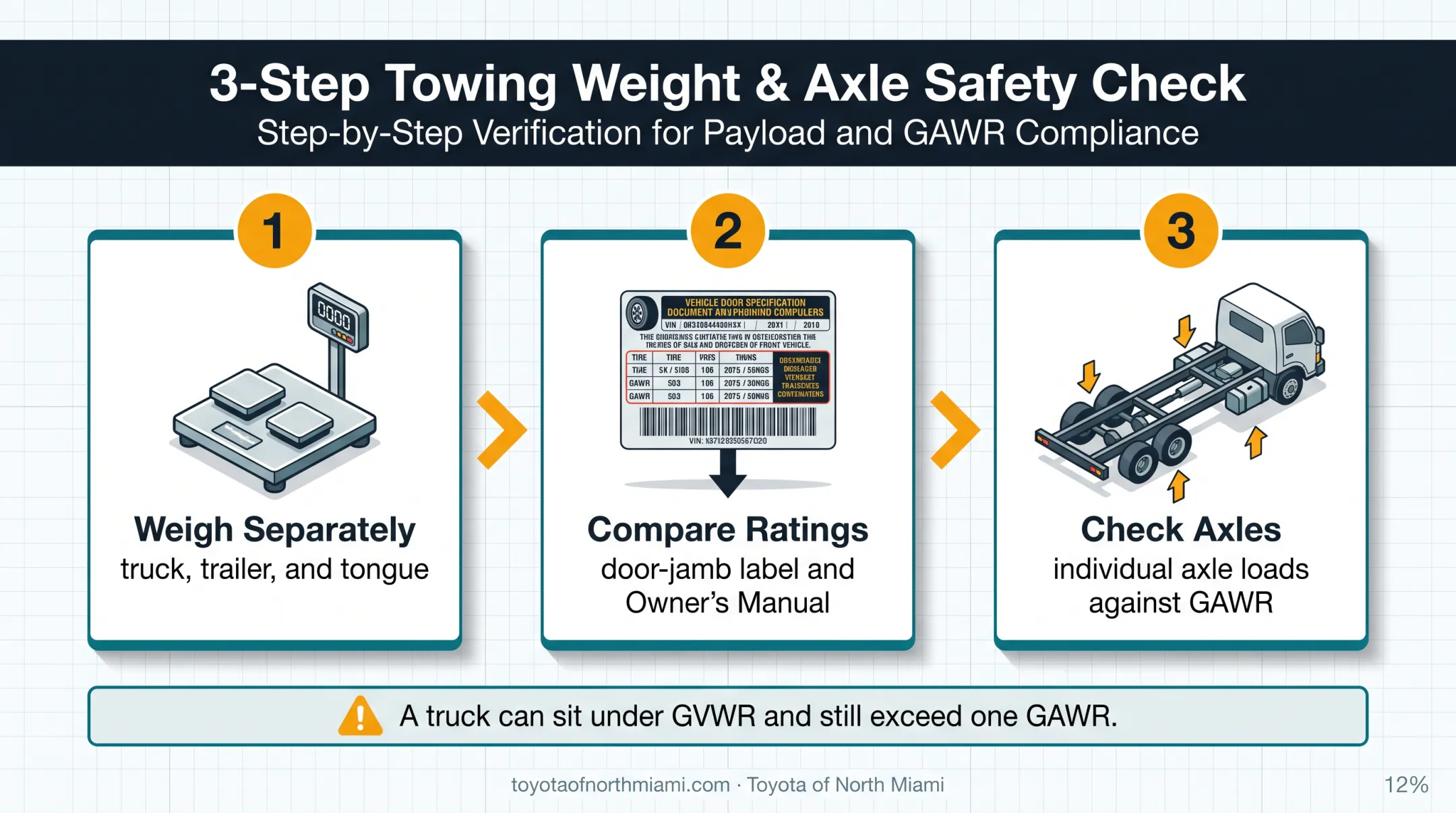

Measuring and Validating a Loaded Tacoma
Before towing near the limit:
- Weigh the loaded truck, trailer, and tongue separately at a certified public scale
- Compare those numbers to the door-jamb label and Owner's Manual, not a brochure figure
- Check individual axle loads. A truck can sit under GVWR and still exceed one GAWR
On the classic "will a 4x8 sheet of plywood fit" question: bed length and tailgate support matter, but so do securement points, overhang past the tailgate, rear visibility, and whether that sheet plus everything else aboard keeps you under payload. Fit and safe hauling are two separate questions.
TRD Off-Road vs. TRD Pro
| TRD Off-Road | TRD Pro | |
|---|---|---|
| Suspension | Bilstein monotube, rear piggyback reservoirs | FOX QS3 3-way adjustable, piggyback reservoirs + bump stops |
| Wheels/tires | 17-18 in., 265/70 all-terrain | 18 in. TRD Pro wheels, 33-in. Goodyear Territory R/T |
| Powertrain | Gas or optional hybrid | Hybrid only |
| Cab/bed | Double Cab, 5 or 6-ft bed | Double Cab, 5-ft bed only |
| Towing | 6,300-6,400 lbs (gas); 6,000 lbs (hybrid) | 6,000 lbs |
TRD Off-Road suits buyers who want trail capability without giving up bed length or powertrain choice. TRD Pro leans further into specialized off-road hardware, trading some flexibility for it. The better pick depends on whether trailheads or trailer towing come up more often in your week.
Implications of Operating Outside the Recommended Range
Overloading a Tacoma doesn't just risk a warning light. It changes how the truck behaves:
- Longer braking distances and reduced steering control
- Overloaded tires or axles, with added heat and drivetrain stress
- Higher risk of trailer sway or component damage
Tire condition matters more than most drivers assume. NHTSA's tire safety guidance notes that underinflation and overloading both accelerate wear and raise blowout risk, regardless of which vehicle is towing.
Common mistakes worth avoiding:
- Treating the headline "max tow" number as universal across every trim
- Confusing bed capacity with total payload
- Ignoring tongue weight because the trailer itself is under the towing rating
- Assuming a tow package permits any trailer weight
- Using a brochure figure without subtracting passengers and accessories
Exceeding published limits can create safety, legal, insurance, and warranty problems. For anything close to the edge, lean on Toyota's documentation and a qualified towing professional rather than a guess.
Conclusion
The 2026 Tacoma's towing and payload numbers depend on the exact configuration you're looking at: cab, bed, drivetrain, powertrain, and every pound of people, cargo, and trailer load added on top.
Toyota of North Miami can help you compare available Tacoma configurations and match equipment to how you actually plan to tow or haul. Browse current Tacoma inventory or reach out to the team with your towing needs. We'll help you figure out which build fits.
Frequently Asked Questions
What is the towing capacity of the 2026 Toyota Tacoma TRD Off-Road?
Gas TRD Off-Road models tow up to 6,300-6,400 lbs depending on bed and transmission; the hybrid i-FORCE MAX version is rated at 6,000 lbs. Cab, drivetrain, and installed equipment can shift the exact figure.
How much weight can the 2026 Toyota Tacoma TRD Off-Road carry in the bed?
Exact trim-level payload figures vary by build, generally falling within Toyota's published 1,380-1,705 lb range for 4x4 Double Cab models. Passengers, accessories, and trailer tongue weight all count against that same total.
Can the 2026 Toyota Tacoma TRD Off-Road carry a 4x8 sheet of plywood?
Yes, when bed length allows a basic fit. You still need solid tailgate support, securement points, controlled overhang, and rear visibility, and the sheet plus everything else must stay within total payload.
Is the 2026 Toyota Tacoma considered a 1/4-ton truck?
"Quarter-ton" is an old classification from decades past and doesn't reflect modern payload math. The 2026 Tacoma's published payload ranges far exceed that historical label. Check the vehicle's official specs instead.
Which Tacoma trim is better: TRD Pro or TRD Off-Road?
Neither is universally superior. TRD Pro offers more specialized off-road suspension hardware, while TRD Off-Road offers more bed-length and powertrain flexibility alongside similar trail capability.
