If you're shopping for a hybrid, you've probably got questions. What does THS 5 actually change? How does it stack up against the fourth-generation system in your neighbor's RAV4? Which current models have it? And does any of this matter once you're sitting in traffic on I-95?
Specifications, fuel economy, and performance vary by model year, trim, and drivetrain. Nothing here replaces checking official Toyota documentation for the specific vehicle you're considering.
Key Takeaways
- THS 5 combines a gas engine, motor-generators, hybrid battery, power electronics, and an eCVT.
- Efficiency gains vary by model, so a fifth-generation label does not make every Toyota hybrid identical.
- Compare EPA ratings, warranty, cargo space, and towing for your vehicle, not just hybrid generation.
- Standard hybrids recharge via regenerative braking and the engine; plug-ins add external charging.
What Is Toyota's Fifth-Generation Hybrid System?
THS 5 is Toyota's latest hybrid architecture, coordinating a gasoline engine and electric motor-generators automatically. There's no clutch to manage, no manual mode switch. The system decides, moment to moment, how much power comes from gas and how much comes from electricity.
Core components found across THS 5 applications:
- A gasoline engine that provides the primary power source and keeps the system running efficiently at steady speeds
- Two motor-generators (commonly called MG1 and MG2) that assist acceleration, recover energy during braking, and help start the engine
- A lithium-ion hybrid battery storing recovered energy for electric assistance
- Power-control electronics managing voltage between the battery, motors, and engine
- An electronically controlled, planetary-type continuously variable transmission (eCVT) blending power sources without traditional gear shifts
- Regenerative braking that captures energy normally lost as heat

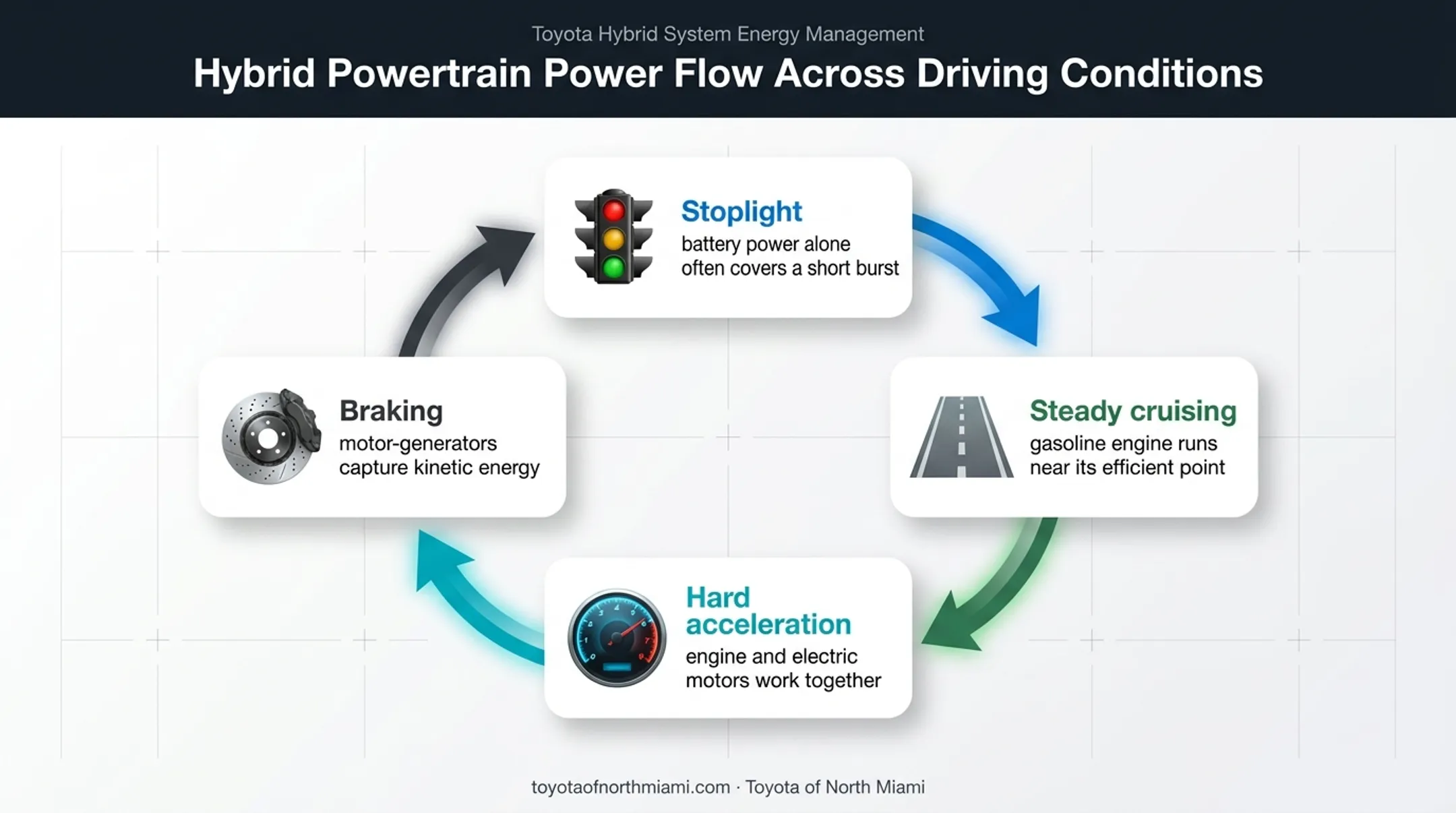

How Power Flows During a Drive
Power splits shift with driving conditions:
- At a stoplight: Battery power alone often covers a short burst, since electric motors deliver full torque instantly
- Steady cruising: Load shifts toward the gasoline engine, which runs near its most efficient point
- Hard acceleration: Engine and electric motors work together
- Braking: Motor-generators capture kinetic energy instead of wasting it as heat
This is different from a standard Toyota plug-in hybrid, which adds an external charging port. A conventional THS 5 hybrid never needs a wall outlet. A plug-in model, like the Prius Plug-in Hybrid, can drive on electricity alone for a limited range before falling back to standard hybrid operation.
THS 5 is a system generation, not a single hardware spec sheet. Engine displacement, battery size, motor output, and AWD setups vary by model. A Camry's THS 5 hardware isn't identical to a RAV4's.
How THS 5 Compares With the Fourth-Generation System
Generational comparisons work best at the system level: packaging, electric-motor capability, energy management, and overall responsiveness. Specific horsepower and mpg numbers belong to individual vehicles, not the generation as a whole.

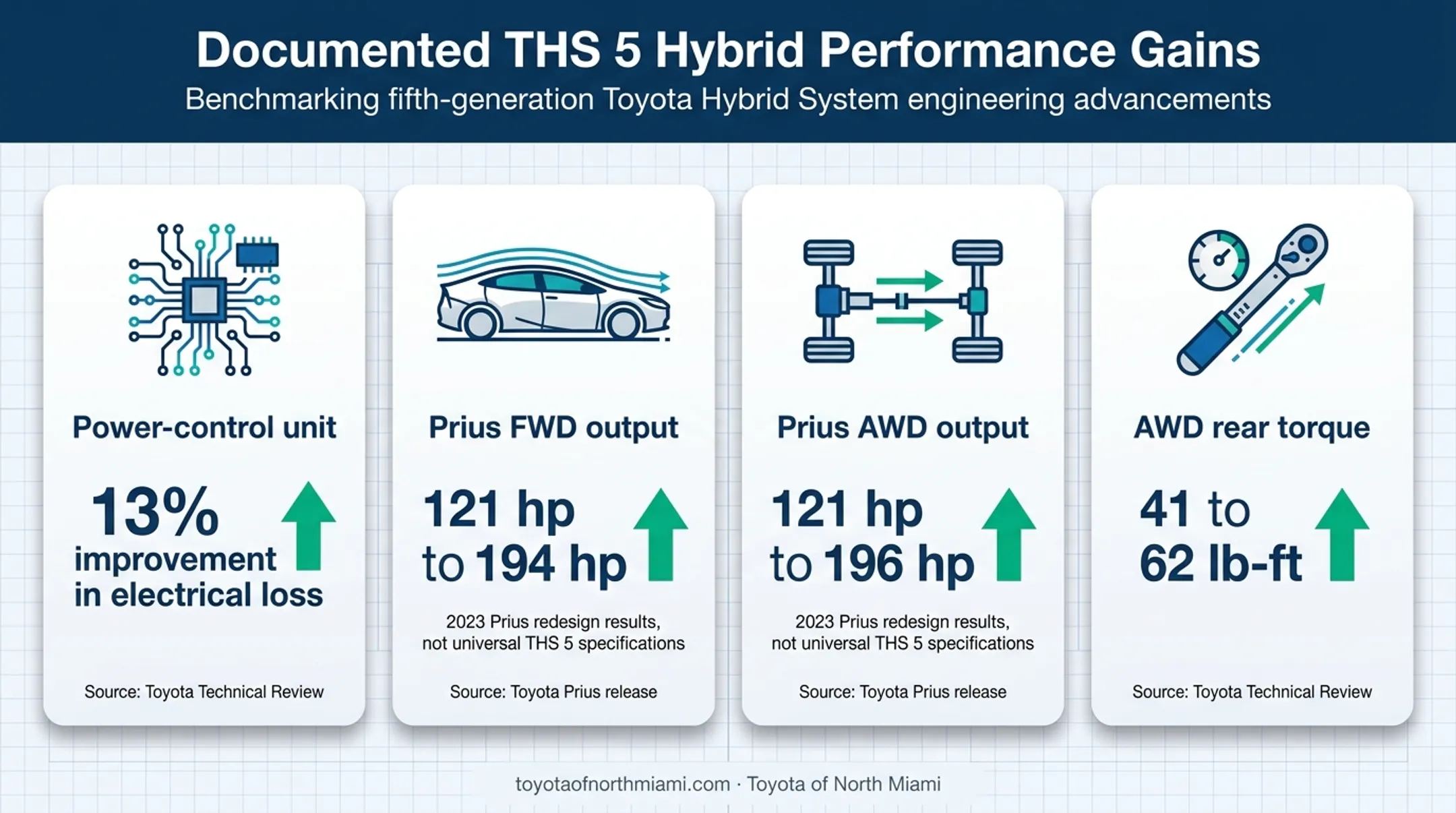

Toyota's own engineering documentation on the redesigned Prius highlights measurable component-level gains. According to Toyota's Technical Review, the revised power-control unit achieved a 13% improvement in electrical loss through redesigned transistors, while a smaller, lighter transaxle motor cut both electrical and mechanical losses.
What tends to carry across THS 5 applications:
- More compact, lighter motor-generators with greater power density
- Lithium-ion batteries replacing older nickel-metal-hydride packs in several models
- Software calibration aimed at a more natural relationship between throttle input and engine speed, rather than the "rubber band" feel some drivers associate with older hybrid CVTs
The 2023 Prius redesign remains the clearest public example of generational gains. Combined with a larger 2.0-liter engine and new battery, Prius output jumped from 121 hp to 194 hp (FWD) or 196 hp (AWD), according to Toyota's Prius release. Rear-motor torque on AWD models rose from 41 to 62 lb-ft.
That's a dramatic jump, but it's a Prius-specific result tied to a larger engine, not a universal THS 5 outcome. The 2025 Camry redesign took a different approach, adjusting motor-generator contribution to smooth out engine revs during acceleration rather than chasing a horsepower headline. Both are THS 5. Both feel different behind the wheel.
Which Toyota Models Use THS 5 and How Should You Choose?
Model availability shifts with every model year, so treat any list as a snapshot, not a permanent roster. Confirm current availability before you shop.
Recent Toyota USA documentation identifies these nameplates as using THS 5:
| Model | Classification | Notes |
|---|---|---|
| Prius | Standard hybrid | Explicitly fifth-generation across current trims |
| Corolla Hybrid | Standard hybrid | Includes Hybrid LE, SE, XLE grades |
| Camry | Standard hybrid | Available FWD or Electronic On-Demand AWD |
| Corolla Cross Hybrid | Standard hybrid | AWD standard |
| RAV4 Hybrid | Standard hybrid | FWD and AWD configurations |
| Crown (XLE, Limited, Nightshade) | Standard hybrid | Crown Platinum uses Hybrid MAX instead |
| Prius Plug-in Hybrid | Plug-in hybrid | Separate battery and electric-range specs |
Not every hybrid Toyota uses THS 5. The RAV4 Plug-in Hybrid runs a sixth-generation plug-in system. Tacoma's i-FORCE MAX, along with the turbocharged hybrid setups in 4Runner and Sequoia, are separate powertrain families entirely. Within Crown, only three of four trims qualify: Platinum sits outside THS 5.
Matching the System to Your Use Case
- Compact and fuel-focused: Corolla Hybrid or Prius suit commuters prioritizing mpg over cargo room.
- Balanced daily driver: RAV4 Hybrid or Corolla Cross Hybrid add cargo space and available AWD without sacrificing much efficiency.
- Passenger or utility priority: Crown (XLE, Limited, Nightshade) trades some fuel economy for cabin space and a more refined ride.
Beyond the hybrid-system label, weigh AWD availability, ground clearance, towing needs, seating capacity, and expected annual mileage. The "best" THS 5 Toyota depends entirely on what you're optimizing for.
Before you decide, check:
- EPA city/highway/combined ratings for the exact trim
- Hybrid battery and hybrid-component warranty terms
- Maintenance schedule and intervals
- Whether the model is a standard hybrid or plug-in
- Available incentives and total cost of ownership
If you're comparing current inventory, the team at Toyota of North Miami can confirm the exact powertrain and trim on any new, used, or Certified Pre-Owned vehicle on the lot. They also handle financing, leasing, and online shopping tools if you'd rather compare trims and schedule a test drive from home.
What THS 5 Means for Everyday Driving and Ownership
Day to day, THS 5 feels seamless. Transitions between gas and electric power happen without a jolt. Electric assistance kicks in during acceleration, and regenerative braking recovers energy every time you slow down.
The eCVT can make engine revs behave differently than a conventional automatic. Revs may hold steady or rise independent of road speed, which takes some drivers a drive or two to get used to.
Fuel Economy: EPA Numbers vs. Real Life

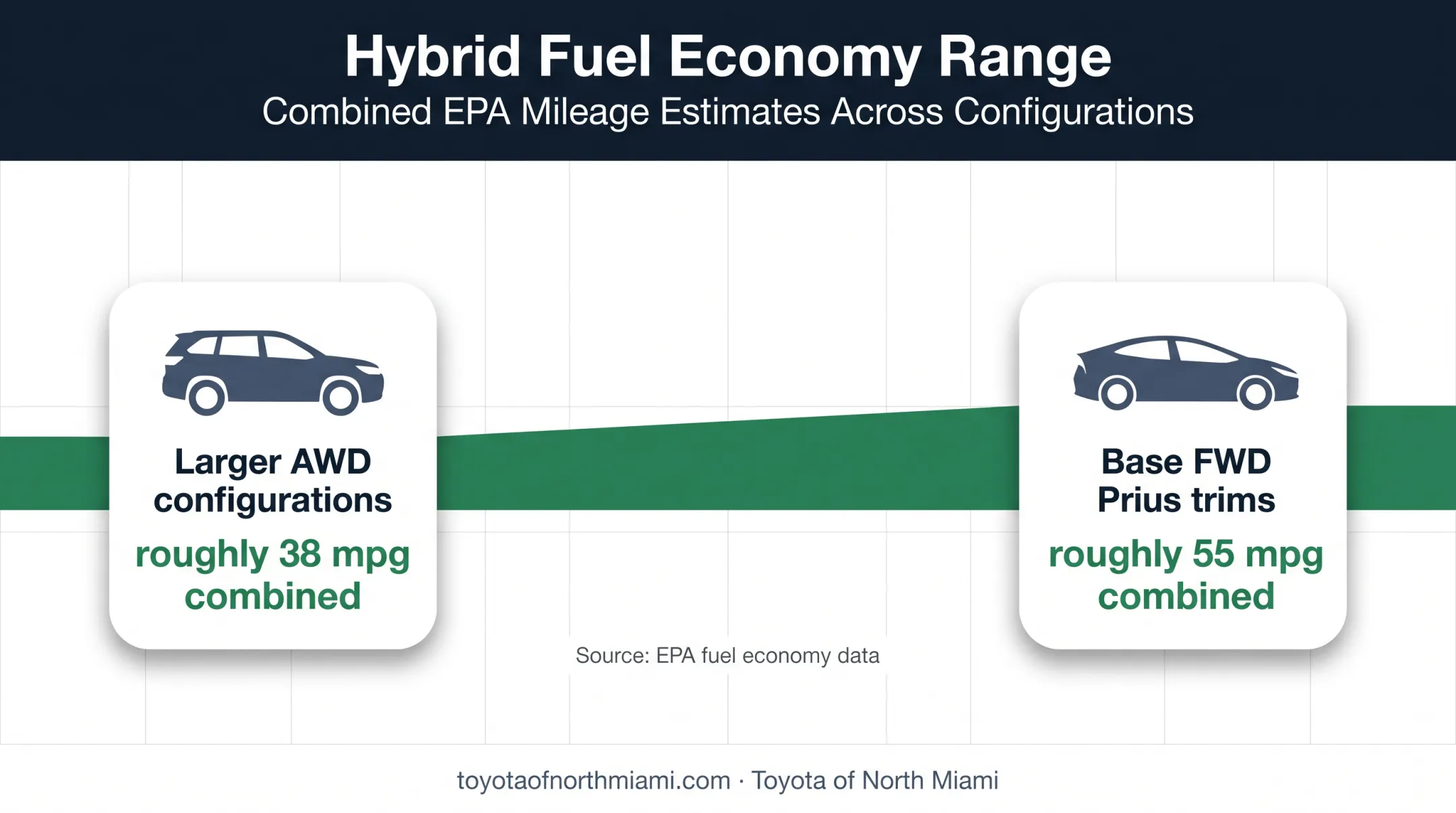

EPA ratings are a standardized starting point, not a guarantee. According to EPA's fuel economy data, combined ratings for current THS 5 models range from roughly 38 mpg on larger AWD configurations up to 55 mpg on base front-wheel-drive Prius trims.
Real-world results shift based on:
- Traffic density and stop-and-go driving
- Outside temperature (cold weather reduces battery efficiency)
- Terrain and elevation changes
- Tire choice and payload
- Driving style and climate-control use
Charging and Maintenance
A standard THS 5 hybrid never needs to be plugged in. Its battery charges through regenerative braking and the engine alone. Plug-in variants, like the Prius Plug-in Hybrid, add an external charging port for extended electric-only driving.
Warranty coverage is worth knowing before you sign anything:
- Hybrid battery: 10 years or 150,000 miles from the in-service date
- Hybrid system components (inverter, control modules): 8 years or 100,000 miles
Scheduled maintenance for most current hybrids runs every 5,000 miles or six months, whichever comes first. That visit usually includes a check of the battery cooling intake filter.
Diagnostics touch high-voltage components, so factory-trained hybrid technicians matter more here than on a conventional gas engine. Comfort, visibility, cargo capacity, safety tech, insurance costs, and financing terms still decide whether a given THS 5 Toyota fits your life.
FAQ
What does THS 5 stand for?
THS 5 refers to Toyota's fifth-generation Hybrid System, the latest version of the gasoline-electric powertrain architecture Toyota has used since the original Prius.
Does every current Toyota hybrid use THS 5?
No. Models like the RAV4 Plug-in Hybrid, Tacoma, 4Runner, and Sequoia use separate electrified systems, including sixth-generation plug-in tech and i-FORCE MAX powertrains.
Do I need to plug in a THS 5 hybrid?
Standard THS 5 hybrids charge entirely through regenerative braking and the gas engine. Only plug-in variants, like the Prius Plug-in Hybrid, require external charging.
How much more efficient is THS 5 than THS 4?
Gains vary by model. Toyota's engineering data shows component-level improvements like reduced electrical losses, but combined mpg depends on the specific vehicle and trim.
What's the hybrid battery warranty?
Toyota's hybrid battery coverage runs 10 years or 150,000 miles from the in-service date, with separate 8-year/100,000-mile coverage for other hybrid system components.
Which Toyota models currently use THS 5?
Recent documentation confirms Prius, Corolla Hybrid, Camry, Corolla Cross Hybrid, RAV4 Hybrid, select Crown trims, and the Prius Plug-in Hybrid. Availability shifts by model year, so verify current trims before buying.
