Many shoppers assume every Grand Highlander tows the same weight. That's not how Toyota rates these vehicles. Powertrain, trim, payload, tongue weight, hitch hardware, and even road grade all factor into what's actually safe to pull.
This guide breaks down the Grand Highlander's real towing numbers by powertrain and model year, what a genuine tow package includes, how to match a trailer correctly, and the mistakes that get owners into trouble. If you're shopping at Toyota of North Miami or comparing configurations elsewhere, this is the information to verify before you sign anything.
Key Takeaways
- Towing capacity varies by powertrain and model year — never assume one number applies to every Grand Highlander
- A tow package can include wiring, a receiver hitch, and brake-controller prep, not just a ball mount
- Payload, tongue weight, and hitch hardware all subtract from your usable towing margin
- Larger or frequent trailer loads may call for a vehicle with more payload and braking capacity than the Grand Highlander offers

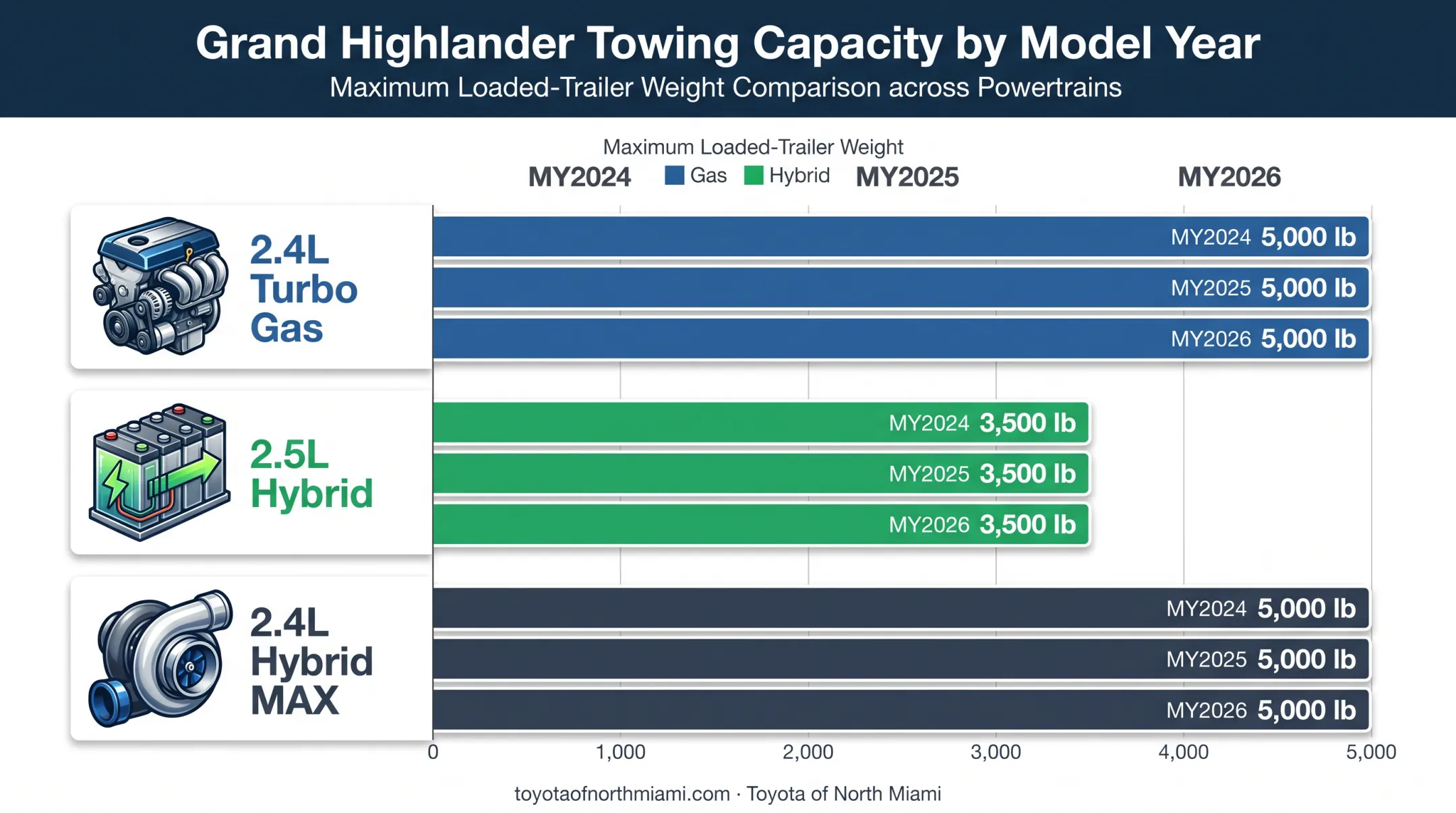

Toyota Grand Highlander Towing Capacity
Toyota rates the Grand Highlander differently depending on powertrain, not trim level. Here's the breakdown across recent model years:
| Powertrain | MY2024 | MY2025 | MY2026 |
|---|---|---|---|
| 2.4L Turbo Gas | 5,000 lb | 5,000 lb | 5,000 lb |
| 2.5L Hybrid (non-MAX) | 3,500 lb | 3,500 lb | 3,500 lb |
| 2.4L Turbo Hybrid MAX | 5,000 lb | 5,000 lb | 5,000 lb |
The gap between the standard Hybrid and Hybrid MAX comes down to the powertrain itself. The 2026 Grand Highlander Hybrid uses a 2.5-liter engine producing 245 combined net horsepower through an electronically controlled continuously variable transmission.
The Hybrid MAX pairs a 2.4-liter turbo with a 6-speed automatic and full-time electronic AWD to make 362 combined horsepower and 400 lb-ft of torque. More torque, delivered through a conventional transmission, is why the MAX variant matches the gas engine's 5,000-lb rating instead of trailing it.
These are maximum loaded-trailer weights, not dry weights. Toyota calculates gross trailer weight as the trailer plus everything inside it: water, propane, gear, and tools. A camper listed at 4,200 lb "dry" could easily weigh 5,000+ lb loaded for a trip.
Why the Published Number Isn't Your Target
The highest rating on the spec sheet assumes a lightly loaded vehicle. In practice:
- Passengers and cargo eat into payload before you hitch anything
- Tongue weight further reduces what's left
- Hitch hardware itself has weight
Toyota's owner's manual is explicit that maximum towing depends on curb weight plus occupants, cargo, and added equipment — meaning your real-world number is almost always lower than the brochure figure.
Independent road tests of the Grand Highlander exist, but published towing-specific data (trailer weight, cooling behavior, observed stability) is limited. Treat Toyota's official rating as the governing figure, and verify any secondhand account against your VIN-specific configuration before relying on it.
What the Towing Package Includes
"Tow package" means different things depending on who's talking. A factory-installed package, a dealer-installed accessory, and an aftermarket kit are three separate things, and only one of them is backed by Toyota's warranty on parts the dealer installs.
Toyota's Grand Highlander accessories lineup lists a Tow Hitch Receiver Package and a Tow Hitch with Wire Harness, sold as accessories rather than built into every trim. A 2026 Grand Highlander Limited FWD and a 2026 Hybrid Limited AWD unit at Toyota of North Miami, for example, both show a tow hitch among included equipment. That hitch is a dealer- or factory-added accessory on that specific unit, not proof every Limited comes equipped that way.
A complete setup typically involves:
- Receiver hitch: bolts to the frame; rated for a specific trailer weight class
- Wiring harness and connector: links trailer lights to the vehicle's electrical system
- Ball mount and hitch ball: often sold separately from the receiver itself
- Brake-controller provisions: wiring or prep for trailers with electric brakes, where equipped
Don't Confuse the Activity Mount With a Tow Hitch
Toyota also sells an Activity Mount for the Grand Highlander, using a 1-1/4-inch receiver tube rated for up to 200 lb of gear. It is not intended for towing. The smaller receiver size and weight rating have nothing to do with the vehicle's actual tow hitch, and mixing the two up is a common and costly mistake.
Weight-distribution hitches and sway control matter too. Toyota's manual calls for:
- A sway-control device when gross trailer weight exceeds 2,000 lb
- Specific steps to restore front-axle height when a weight-distributing hitch is used
Never tap into the vehicle's hydraulic brake lines to wire a trailer brake controller. Toyota warns this reduces braking effectiveness.
Before buying a hitch or wiring kit, ask Toyota of North Miami's parts team to pull your VIN-specific equipment list. It's a quick way to confirm what's already installed and what's compatible before you spend money on the wrong part.
How to Match a Trailer to the Grand Highlander

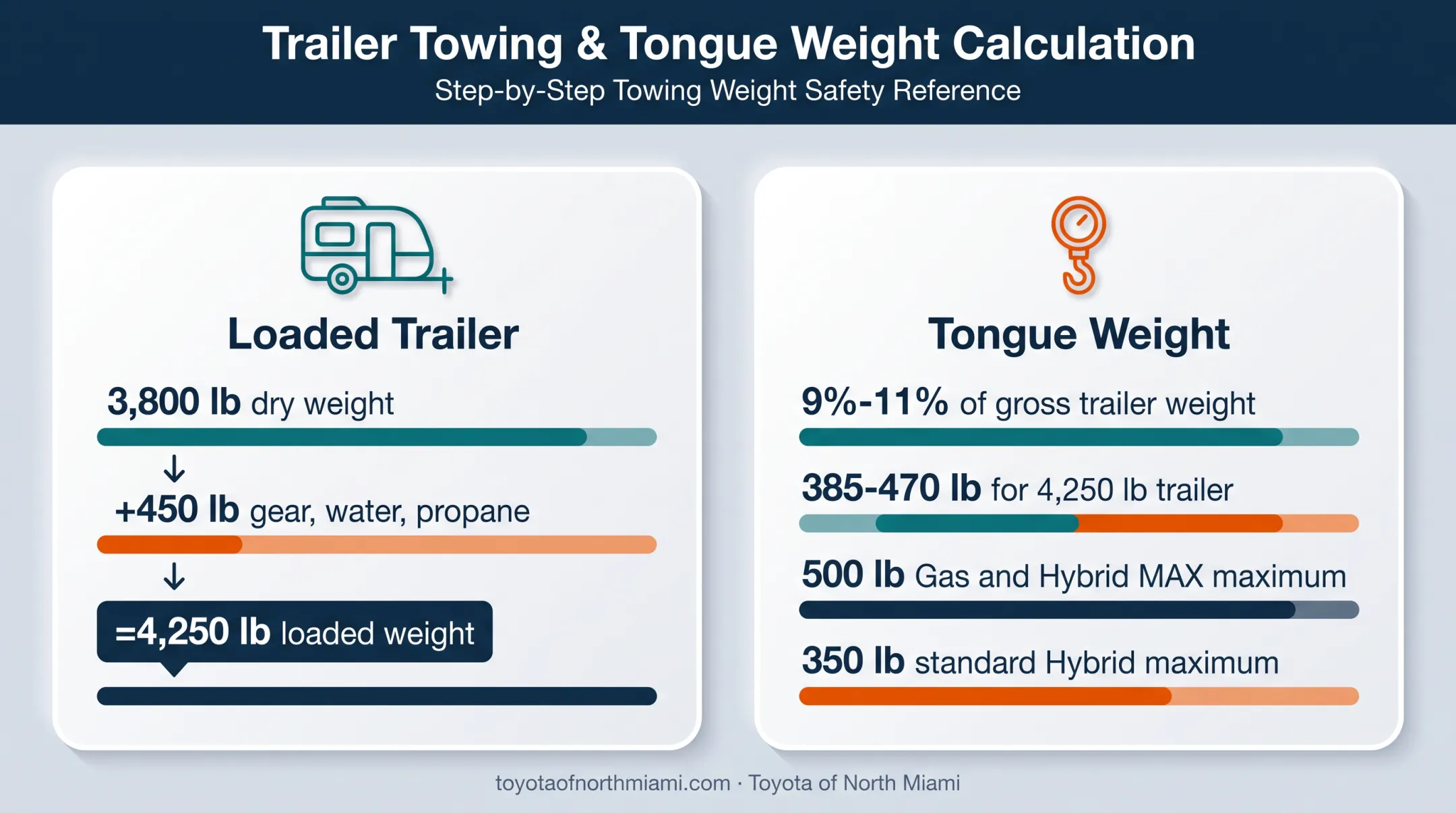

Start with the trailer's fully loaded weight, not the manufacturer's empty or dry figure. Here's a simple worked example using hypothetical numbers:
- Trailer dry weight: 3,800 lb
- Gear, water, and propane added: 450 lb
- Loaded trailer weight: 4,250 lb
On a Hybrid MAX rated for 5,000 lb, that leaves headroom. On the standard Hybrid's 3,500-lb rating, that same trailer is already over the limit before you've hitched up.
Tongue Weight Changes the Math
Toyota specifies tongue weight at 9%–11% of gross trailer weight. For that 4,250-lb trailer, that's roughly 385–470 lb pressing down on the hitch, weight that comes directly out of the vehicle's payload, not the trailer's.
The 2024 brochure listed maximum tongue weight at 500 lb for Gas and Hybrid MAX, and 350 lb for the standard Hybrid. Overloading tongue weight is a common cause of trailer sway and rear-axle overload.
Limits to Check Together
Don't look at towing capacity in isolation. Compare all of these before you commit to a trailer:
- Maximum trailer weight (TWR)
- Maximum tongue weight
- Payload capacity
- Front and rear gross axle weight ratings (GAWR)
- Gross vehicle weight rating (GVWR)
- Gross combined weight rating (GCWR)
Toyota's Hybrid manuals list GCWR at 9,635 lb for FWD, 9,750 lb for AWD, and 10,500 lb for Hybrid MAX. The Gas model's manual lists 10,600 lb. Those are different figures entirely, which is exactly why guessing based on another configuration doesn't work.
Route conditions matter just as much as the math. Sustained grades, high ambient temperatures, elevation, and repeated towing trips all reduce your practical margin even when you're technically under every rated limit.
If a load is close to any limit, get the fully loaded rig weighed at a certified public scale. Compare both axle and combined readings against your vehicle's certification label.
Preparing to Tow and Staying Within Limits
A pre-trip checklist catches most towing problems before they start:
- Tire pressures and load ratings (vehicle and trailer)
- Hitch pin, ball, and coupler properly secured
- Safety chains crossed and attached
- Breakaway cable connected
- Trailer lights and electrical connector tested
- Mirrors adjusted for trailer width
- Trailer brakes functioning correctly
- Cargo secured in both vehicle and trailer

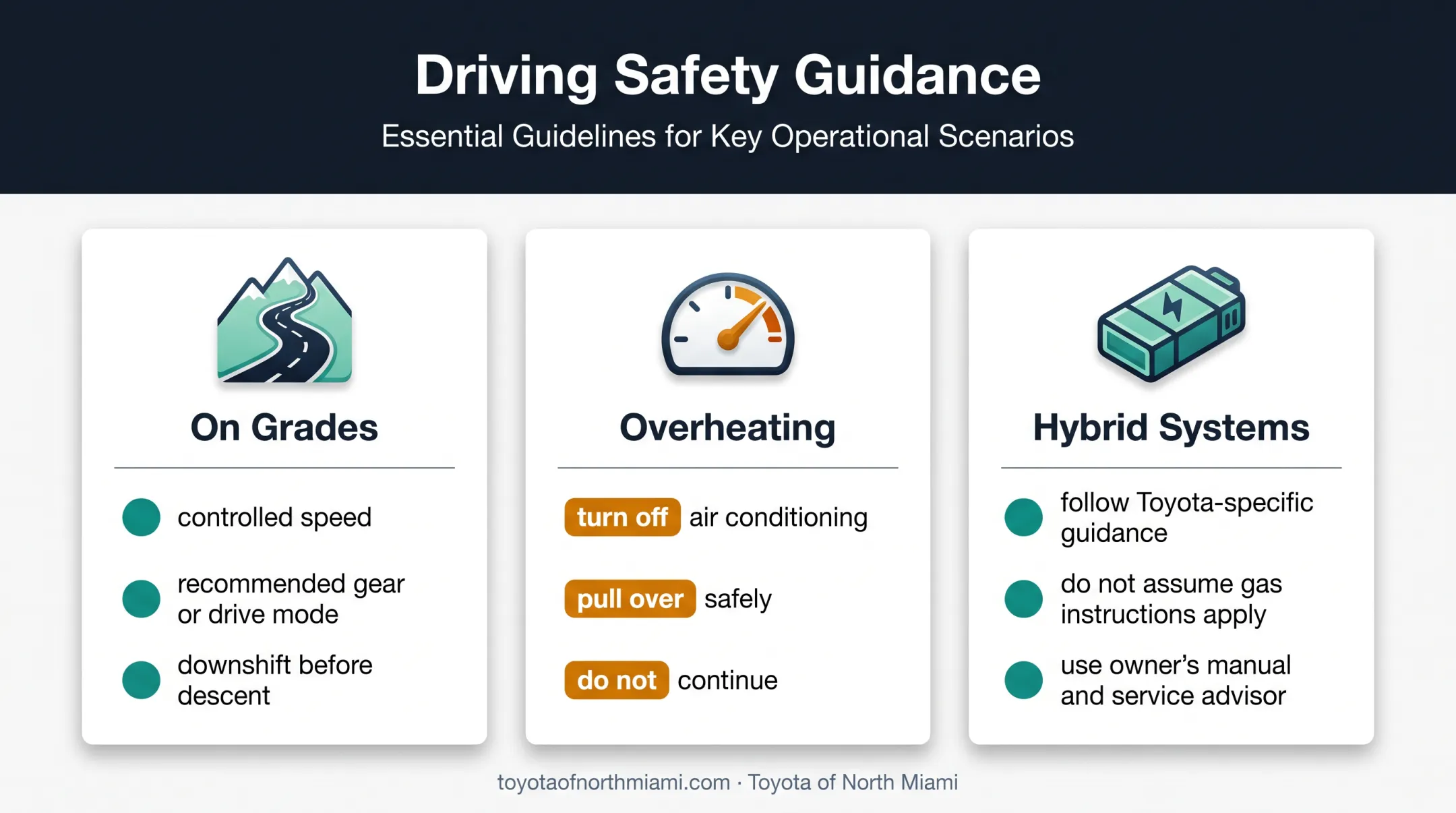

On grades, use a controlled speed and the vehicle's recommended gear or drive mode rather than riding the brakes. Toyota's manual warns that holding the brake pedal too long or applying it too frequently can overheat the brakes and reduce stopping power. Downshift before a long descent, not during it.
Watch the dash for overheating warnings. If the coolant temperature indicates a problem, turn off the air conditioning and pull over safely rather than continuing to the next exit.
Hybrid MAX and standard Hybrid owners should follow Toyota's specific guidance on battery cooling and system behavior while towing rather than assuming the gas model's instructions apply. Don't rely on an anecdotal scan-tool reading from an online forum as proof of what your system can handle. The owner's manual and a Toyota service advisor are the reliable sources here.
Common Misinterpretations and Risks
A few assumptions cause most towing mistakes:
- A hitch alone doesn't change your rated capacity. The tow rating belongs to the complete, certified vehicle configuration. Bolting on a receiver doesn't add capacity that wasn't there.
- The advertised maximum assumes a nearly empty vehicle. Passengers, cargo, tongue weight, and hitch hardware all subtract from it.
- Specs don't transfer between model years or powertrains. A standard Highlander's rating, a different Grand Highlander model year, or another powertrain entirely can carry a different number. Always check your specific VIN.
Operating beyond a limit, or with mismatched equipment, carries real consequences: reduced braking control, trailer sway, overloaded axles, accelerated wear, overheating, and tire stress. It can also create warranty or insurance complications if something goes wrong while the vehicle was loaded beyond its rated limits.
When in doubt, the owner's manual, the door-jamb certification label, and a qualified Toyota service department are the three sources that settle any question, not a dealer listing, a forum post, or another vehicle's spec sheet.
Conclusion
Grand Highlander towing capability comes down to the exact powertrain and equipment on your specific vehicle, not the model name on the back. A Gas or Hybrid MAX model rated at 5,000 lb and a standard Hybrid rated at 3,500 lb are not interchangeable for trailer-shopping purposes.
Match the right configuration to your trailer's loaded weight, check tongue weight and payload together, and confirm your hitch and wiring before you tow anything. If you're comparing Grand Highlander configurations or want your VIN-specific equipment list verified, the team at Toyota of North Miami can walk through what's installed and what's compatible. Confirm that before you buy a hitch or sign for a trailer.
Frequently Asked Questions
How much would it cost to add a tow package to a Toyota Highlander?
Cost varies by model year, existing factory prep, and whether you need wiring, a brake controller, or just a hitch. Toyota's accessories catalog lists a Tow Hitch Receiver package starting around $759 MSRP, before installation. Request a VIN-specific quote from Toyota of North Miami for an accurate total.
Can I add a tow package to my Toyota Highlander?
Many Highlanders can receive compatible towing equipment as a dealer-installed accessory. Installation doesn't change the vehicle's certified tow rating. Confirm compatibility with your owner's manual and a Toyota service department first.
What does the Toyota tow package include?
Contents vary by model and year but commonly include a receiver hitch, wiring harness, trailer-light connector, and related hardware. Always verify the official equipment list for your specific VIN rather than assuming a standard contents list.
How do I tell if my Toyota Highlander has a tow package?
Check the window sticker, build sheet, or owner's manual, and look for a receiver and wiring connector on the vehicle itself. A visible hitch alone doesn't confirm the full package. A VIN lookup through Toyota settles it definitively.
How much can a 2026 Toyota Grand Highlander hybrid tow?
The standard 2026 Hybrid is rated up to 3,500 lb, while the Hybrid MAX is rated up to 5,000 lb, according to Toyota's 2026 announcement. Payload, tongue weight, and loaded conditions still apply on top of that figure.
Is the Grand Highlander a good tow vehicle?
It's a solid choice for moderate, properly matched loads when correctly equipped. For larger, frequent, or mountainous towing near the vehicle's limits, a vehicle with more payload and braking capacity may be the better fit.
