Introduction
A Toyota Tundra's bed size shapes nearly everything about ownership: what you can haul without a trailer, whether the truck clears your garage door, and which cab layout actually fits your routine.
Shoppers often assume one bed length works across every Tundra trim, then find out mid-negotiation that their preferred cab doesn't pair with it.
Bed length and width shift by model year, cab style, trim, drivetrain, and wheelbase. A 2021 Tundra's "short bed" isn't measured the same way as a 2022 or 2026 model's. Treating these specs as universal is how buyers end up with a truck that's a few inches too long for the driveway.
This guide covers Tundra bed lengths in feet, bed width and depth, related exterior dimensions, how cab choice pairs with bed length, and how to measure your own cargo and parking space before you commit.
Key Takeaways
- Toyota's current lineup lists three nominal bed lengths: 5.5-foot, 6.5-foot, and 8.1-foot
- CrewMax pairs with 5.5-foot and 6.5-foot beds; Double Cab pairs with 6.5-foot and 8.1-foot beds
- Inside bed width runs 58.7 inches, but usable space between wheel wells narrows to 48.7 inches
- Overall truck length shifts by configuration, from roughly 233.6 inches to 252.5 inches
- Measure your cargo and parking space before choosing, since nominal bed names aren't exact usable length
What Toyota Tundra Bed Sizes Represent
"Bed length" is Toyota's shorthand for the approximate front-to-back distance inside the pickup box, measured from the bulkhead behind the cab to the inside of the tailgate. It's a nominal figure, not a tape-measure guarantee.
Toyota's own spec sheets show the gap between the marketing name and the real number. A "5.5-foot" bed measures 65.6 inches inside on the 2022 model, about 0.4 inches short of the rounded 66-inch label, according to Toyota's MY2022 brochure. The 6.5-foot bed comes in at 77.6 inches, and the 8.1-foot bed at 96.5 inches.
That matters because bed length is a hard constraint on what you can haul with the tailgate closed. Four-foot plywood sheets, mulch bags, mountain bikes, generators: all of it has to fit within the floor length and width Toyota actually built, not the rounded number on the window sticker.
Factors That Influence Real-World Dimensions
Several things change what you actually get in daily use:
- Model year and generation - a 2021 short bed measures 66.7 inches inside; the redesigned 2022 short bed measures 65.6 inches
- Cab style and wheelbase - longer cabs push wheelbase and overall length even when bed length stays the same
- Bed accessories - liners, tonneau covers, toolboxes, and tie-down hardware all eat into usable space
- Tailgate position and load overhang - anything longer than the bed floor needs the tailgate down, a bed extender, or a legally marked overhang
Always check the window sticker or current Toyota spec page for your exact configuration. Mixing numbers from a 2021 brochure with a 2026 trim listing is how inaccurate comparisons happen.
Toyota Tundra Bed Lengths and Dimensions in Feet
Toyota offers three nominal bed lengths across the current lineup. Here's what each one actually measures, where the width narrows, and how exterior dimensions shift by configuration.

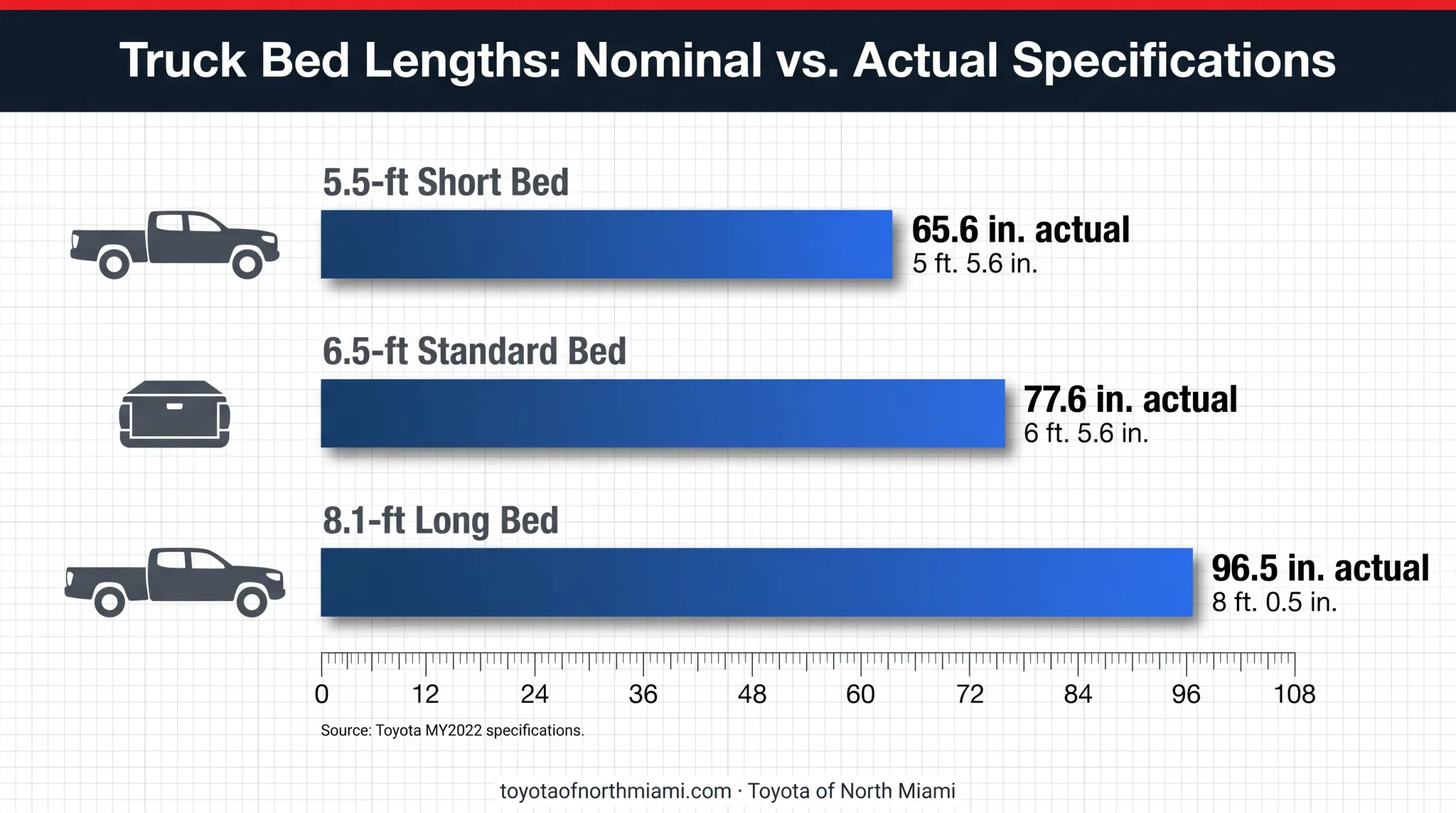

Nominal Bed-Length Options
Toyota's 2026 materials on the official Tundra lineup page list three named bed sizes:
| Nominal name | Rounded conversion | Actual inside length (MY2022) |
|---|---|---|
| 5.5-ft. Short Bed | 5 ft. 6 in. | 65.6 in. (5 ft. 5.6 in.) |
| 6.5-ft. Standard Bed | 6 ft. 6 in. | 77.6 in. (6 ft. 5.6 in.) |
| 8.1-ft. Long Bed | 8 ft. 1.2 in. | 96.5 in. (8 ft. 0.5 in.) |
What each length typically suits:
- 5.5-ft. Short Bed - groceries, coolers, strollers, dirt bikes, weekend gear
- 6.5-ft. Standard Bed - landscaping supplies, furniture, home-improvement runs, side-by-sides with the tailgate down
- 8.1-ft. Long Bed - framing lumber, ladders, pipe, and job-site equipment that needs to ride flat
Bed Width
Bed width isn't one number. Toyota's MY2022 spec sheet lists an inside bed width of 58.7 inches, but usable space between the wheel wells narrows to 48.7 inches. That 10-inch difference is exactly where you'll run into trouble laying a 4-foot sheet of plywood flat instead of propping it on top of the wheel wells.
Don't confuse either figure with the truck's 80.2-inch overall exterior width (81.6 inches on TRD Pro). That's the body measurement, not the cargo box.
Bed Depth and Usable Length
Inside bed depth measures 20.9 inches across all three bed lengths on the 2022 model, versus 22.2 inches on the prior-generation 2021 truck. Toyota's published figures cover inside bed length and depth only; they don't include a separate tailgate-down extension measurement.
A few things change usable length in practice:
- Spray-on bedliners add negligible thickness and don't meaningfully reduce cargo space
- Retractable tonneau covers (such as the RetraxPRO XR in Toyota's accessories catalog) slide open for cargo that won't fit under a fixed cover
- Bed extenders add roughly 2 feet with the tailgate down, useful for longboards, kayaks, or slightly overhanging lumber
Related Exterior Dimensions
Exterior dimensions shift by cab and bed combination. The 2026 Tundra's base figures: 233.6 inches overall length, 80.2 inches wide, 78.0 inches tall, and a 145.7-inch wheelbase. Longer-bed configurations stretch well past that. Toyota's MY2022 matrix lists the Double Cab Long Bed at 252.5 inches overall.
These numbers matter beyond hauling. Garage doors, car washes, narrow driveways, and parking structures all have fixed clearances. Mirrors, running boards, roof racks, and antennas add inches the body spec doesn't account for, so leave extra room on top of the published length and width.

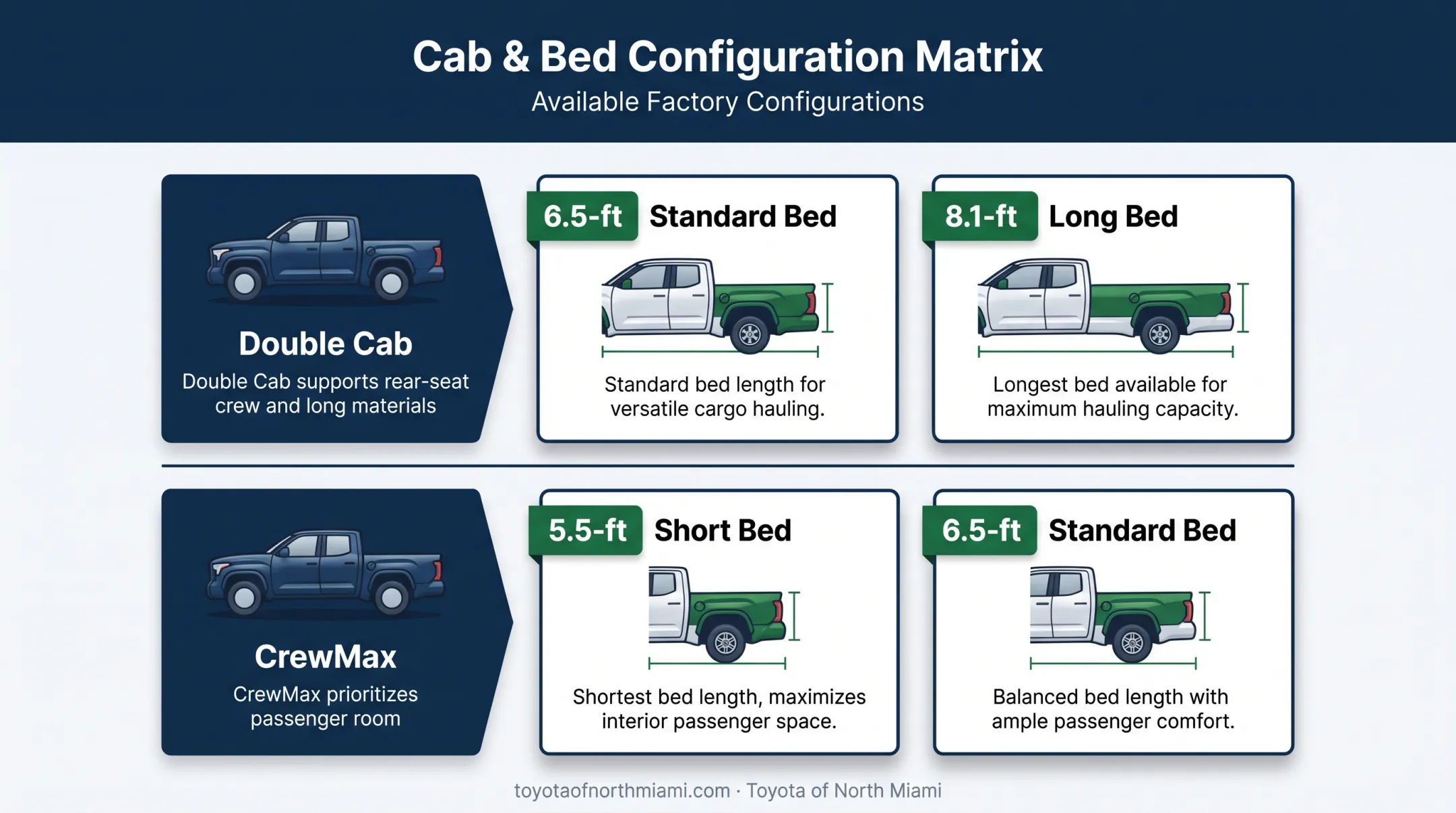

How Cab and Configuration Affect Dimensions
Cab style sets passenger priorities. Bed length sets cargo priorities. Every Tundra configuration is a trade-off between the two, and not every combination exists.
Double Cab Configurations
Toyota's MY2022 lineup pairs Double Cab with the 6.5-ft. Standard Bed and the 8.1-ft. Long Bed; it isn't offered with the short bed. For 2026, Toyota's brochure confirms an SR5 Double Cab is still available with the 8.1-ft. Long Bed.
A Double Cab with the long bed suits buyers who need rear-seat capacity for a crew but also haul long materials regularly, like contractors, landscapers, and anyone who'd rather skip a trailer for routine lumber or pipe runs.
CrewMax Configurations
CrewMax pairs with the 5.5-ft. Short Bed and the 6.5-ft. Standard Bed, per Toyota's official matrix. Edmunds' 2026 hybrid trim listings confirm both bed lengths remain available on Limited CrewMax trims, in rear-wheel and four-wheel drive.
- CrewMax + Short Bed - maximum passenger room, tightest overall length, suited to families who tow a trailer for bigger loads
- CrewMax + Standard Bed - more cargo length without sacrificing the larger cab, at the cost of roughly 12 inches of additional overall length
Configuration Comparison
| Configuration (MY2022) | Bed length | Overall length | Priority |
|---|---|---|---|
| Double Cab, 6.5-ft. | 77.6 in. | 233.6 in. | Balanced |
| Double Cab, 8.1-ft. | 96.5 in. | 252.5 in. | Cargo |
| CrewMax, 5.5-ft. | 65.6 in. | 233.6 in. | Passengers |
| CrewMax, 6.5-ft. | 77.6 in. | 245.6 in. | Balanced-plus |
These figures come from Toyota's official MY2022 brochure. Confirm current-year specifications before comparing, since trim availability and equipment like 4WD, wheel size, and suspension can shift published clearances slightly.

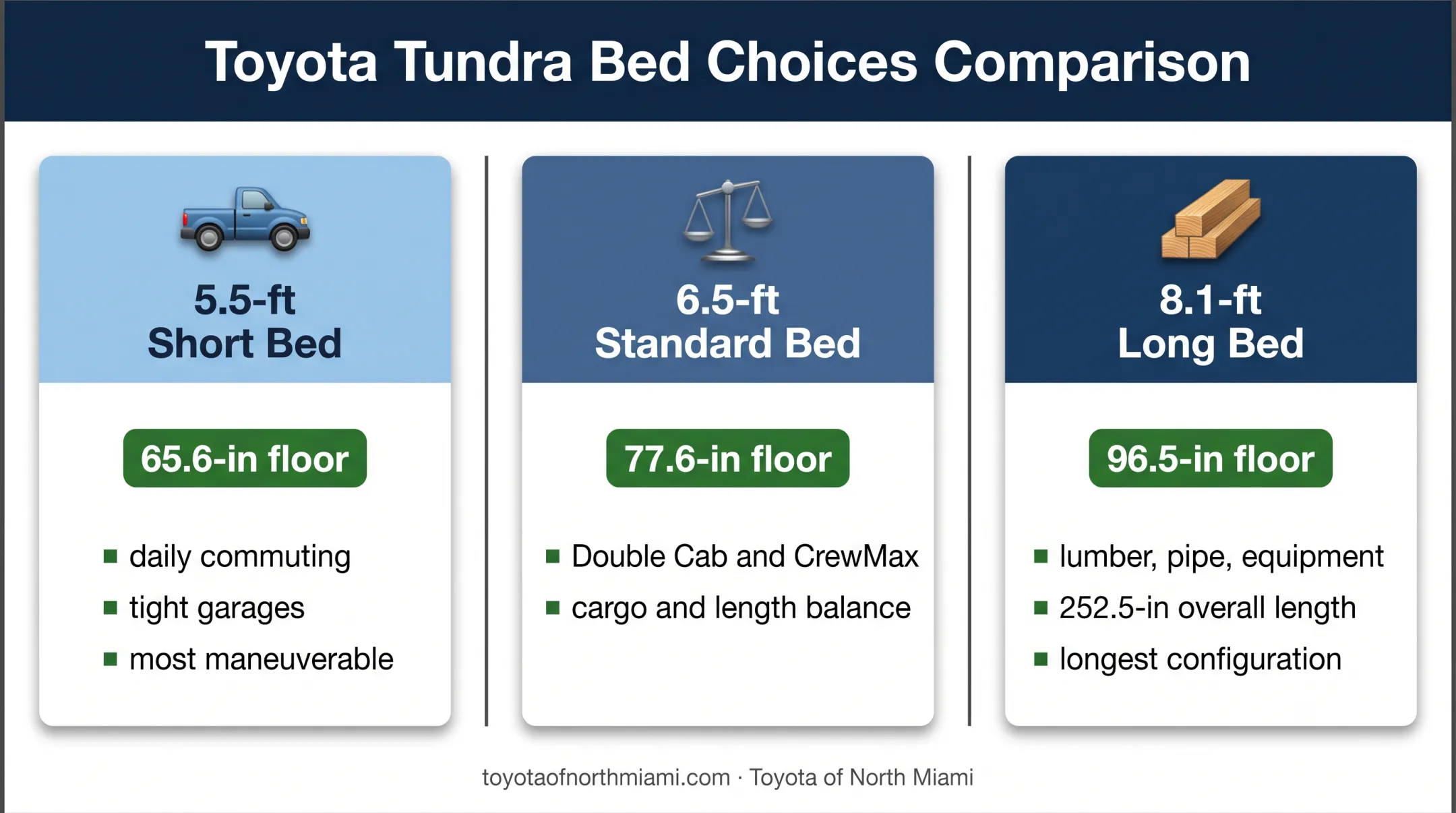

Choosing the Right Tundra Bed Size for Your Needs
Start with the longest item you haul regularly, not the longest bed available. Then weigh passenger needs, parking limits, and how often you actually need the extra cargo room.
Shorter Bed
A 5.5-ft. bed suits daily commuters, families, and anyone parking in tight garages or urban spaces. It's the most maneuverable Tundra and the easiest to park.
Full sheets of plywood, motorcycles, and long lumber won't lie flat with the tailgate closed. If that's a once-a-year need, a bed extender or roof rack may cover the gap.
Mid-Length Bed
The 6.5-ft. bed is the closest thing to a universal Tundra, available on both Double Cab and CrewMax. It balances cargo length against overall vehicle length reasonably well.
Don't rely on the name alone. Compare the actual 77.6-inch floor length and 48.7-inch wheel-well width against what you regularly carry, whether that's fence panels, appliances, or ATV gear.
Long Bed
The 8.1-ft. bed suits contractors, tradespeople, and landscapers who routinely haul lumber, pipe, or equipment that needs to ride flat.
Trade-offs worth weighing:
- Overall length stretches to 252.5 inches, the longest in the lineup
- Tighter maneuvering in parking lots and job sites despite the 24.3-ft. turning radius
- Garage clearance becomes a real concern in older homes with shorter bays
Practical Cargo and Parking Checklist
Before you buy:
- Measure your longest and widest regular cargo item, including anything you tow or stack
- Check wheel-well spacing against anything you plan to lay flat
- Decide whether the tailgate needs to stay closed for weather or security
- Measure your garage door width, interior depth, ceiling height, and driveway slope
- Compare the exact configuration in person, or confirm current specs and available trims with Toyota of North Miami before ordering accessories
How to Measure and Validate Tundra Bed Fit
Published specs are a starting point. The truck in front of you, with its exact trim, wheels, and accessories, is what actually needs to fit your garage and your cargo.
Measurement and Verification
Use consistent reference points when checking a Tundra in person:
- Bed floor length - measured along the floor from the bulkhead to the inside of the tailgate
- Maximum inside width - at the widest point of the box
- Width between wheel wells - the real constraint for flat cargo
- Bed depth - floor to the top of the bed rail
- Tailgate height and tailgate-down length - for anything that needs to extend past the box
Confirm official numbers through the owner's manual, the vehicle's window sticker, or the current Toyota model page, not a secondhand listing. Dealer sites and third-party databases sometimes blend specifications from different model years.
Common Misinterpretations in Practice
- Treating "5.5-foot," "6.5-foot," or "8.1-foot" as the exact usable length instead of a rounded name
- Confusing overall truck width (80.2 in.) with inside bed width (58.7 in.) or wheel-well width (48.7 in.)
- Assuming every bed length is available on every cab, trim, and drivetrain
- Forgetting that oversized cargo may need the tailgate down, a bed extender, and a legally marked overhang
- Judging garage fit on body length alone, ignoring mirrors, accessories, and room to walk around the truck
Portland's municipal garage code, for example, calls for an 18-foot-deep clear parking space, shorter than every Tundra configuration listed here, according to Portland's garage guidance. A local code minimum isn't a truck-fit guarantee. Measure your actual garage.
Conclusion
Toyota Tundra bed sizes aren't a single number. They're a combination of nominal length, actual inside measurements, width at the wheel wells, and the overall footprint tied to your cab choice. A 5.5-foot CrewMax and a 6.5-foot Double Cab can share the same overall length while offering very different cargo space. That overlap is easy to miss if you shop by label alone.
The right bed size comes down to what you haul, who rides with you, and where you park, not whichever bed is longest on paper. Verify the exact model-year specifications for the Tundra you're considering, then see it in person before ordering a tonneau cover, bed extender, or any other accessory.
Frequently Asked Questions
What bed lengths does the Toyota Tundra come in (in feet)?
Current Tundra lineups offer 5.5-foot, 6.5-foot, and 8.1-foot beds. Availability depends on cab style and trim, so confirm the combination for your specific model year before you shop.
How wide is the Toyota Tundra bed?
Inside bed width measures 58.7 inches, but usable space between the wheel wells narrows to 48.7 inches. Overall truck width is 80.2 inches, and that's the body, not the cargo box.
Which Toyota Tundra cab has the longest bed?
Double Cab pairs with the 8.1-foot Long Bed, Toyota's longest option. CrewMax tops out at the 6.5-foot Standard Bed, trading bed length for a larger passenger compartment.
How do I know which Toyota Tundra bed size is right for me?
Measure the longest item you haul regularly, factor in passenger needs and parking space, and decide whether the tailgate needs to stay closed. Compare that against the actual floor length, not just the bed's nominal name.
Will a Toyota Tundra fit in a standard garage?
It depends on your exact configuration and your garage's real dimensions: length, width, height, mirrors, and room to walk around the truck. Measure both before assuming a fit.
